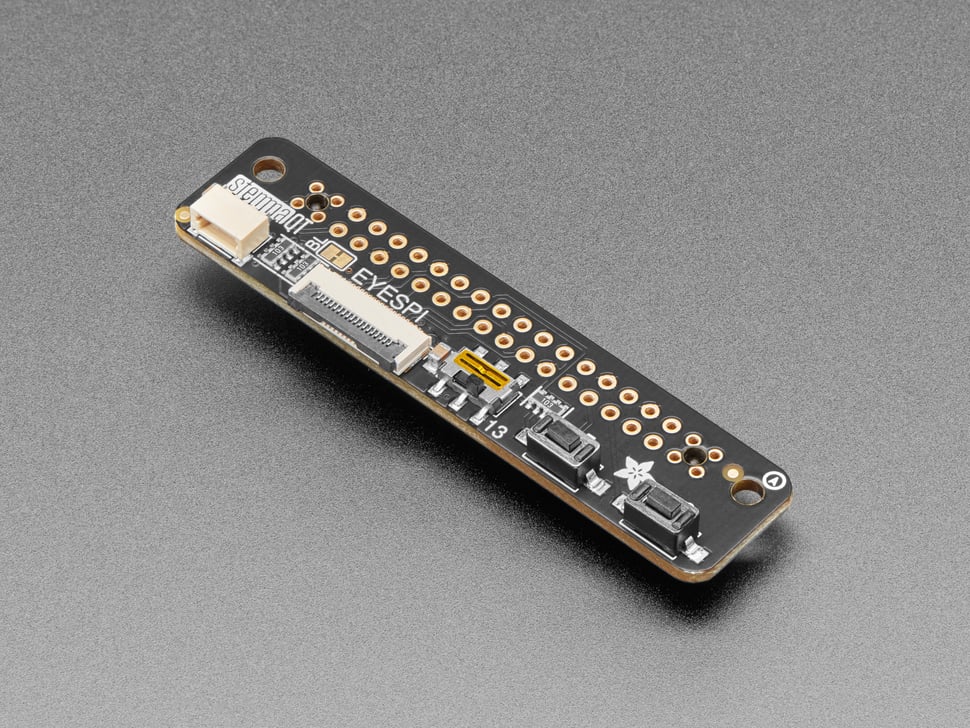

Elevate your Raspberry Pi experience with the EYESPI Pi Beret. This ingenious HAT revolutionizes hardware integration by eliminating pin-counting and intricate breakout board setups. With a simple plug-and-play approach, it effortlessly connects an array of captivating components, from vibrant color TFT and E-Ink displays to cutting-edge sensors. The EYESPI Pi Beret unleashes the true potential of your projects, making them faster and more efficient to bring to life.
Experience the freedom to explore diverse hardware options, all thanks to the versatile connectivity offered by the EYESPI Pi Beret. Assembling your dream projects has never been easier or more seamless. Step into a world where innovation meets convenience, and where your creative visions can flourish without the constraints of complex wiring. Embrace the future of Raspberry Pi hardware integration with the EYESPI Pi Beret and redefine the way you build.
Our most recent display breakouts have come with a new feature: an 18-pin "EYE SPI" standard FPC connector with flip-top connector. This is intended to be a sort-of "STEMMA QT for displays" - a way to quickly connect and extend display wiring that uses a lot of SPI pins. In this case we need a lot of SPI and accessory pins, and we want to be able to use long distances, so we go with an 18-pin 0.5mm pitch FPC.

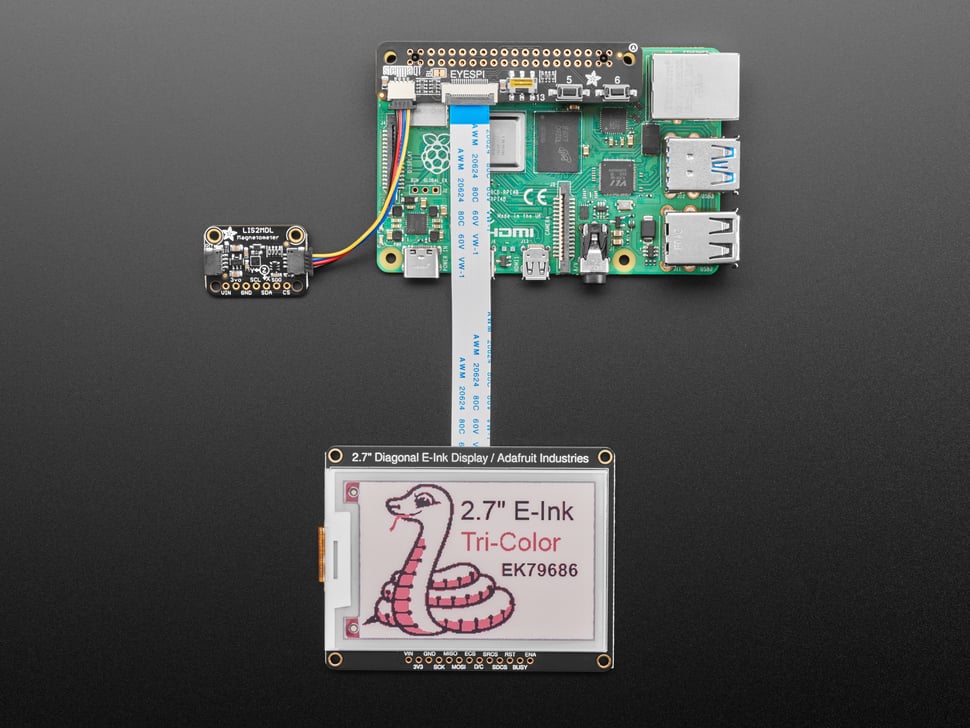

With such a slim and flexible cable, it's easy to have displays anywhere without them physically attached to the Pi like in our PiTFTs. Accessorize with big bold colorful displays or power-sipping E-Ink.
Don't forget you'll also want an 18-pin EYESPI FPC cable. And of course one of our EYESPI displays too - look for the EYESPI logo on the back to know you've got one that can clip in.

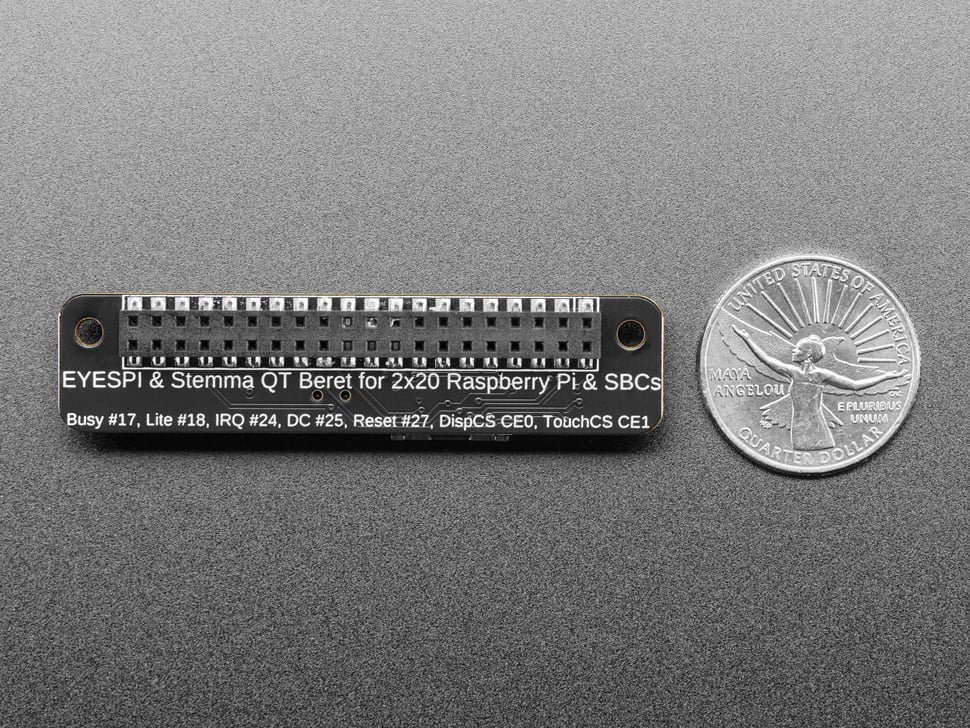

- MOSI/MISO/SCK SPI pins are connected to the default SPI port on the Raspberry Pi
- SDA/SCL I2C pins are connected to the default I2C port on the Pi
- Display CS on Raspberry Pi CE 0
- Display DC on Raspberry Pi GPIO #25
- Display Reset on Raspberry Pi GPIO #27
- Display Busy on Raspberry Pi GPIO #17 (used for E-Inks)
- Display Backlight on Raspberry Pi GPIO #18 (there's a jumper to cut/disable this if you want to use the PWM output for other uses like NeoPixels)
- Touch CS on Raspberry Pi CE 1
- Touch IRQ on Raspberry Pi GPIO #24
The remaining EYESPI pins are not connected, leaving you with plenty of GPIO for other accessory boards.

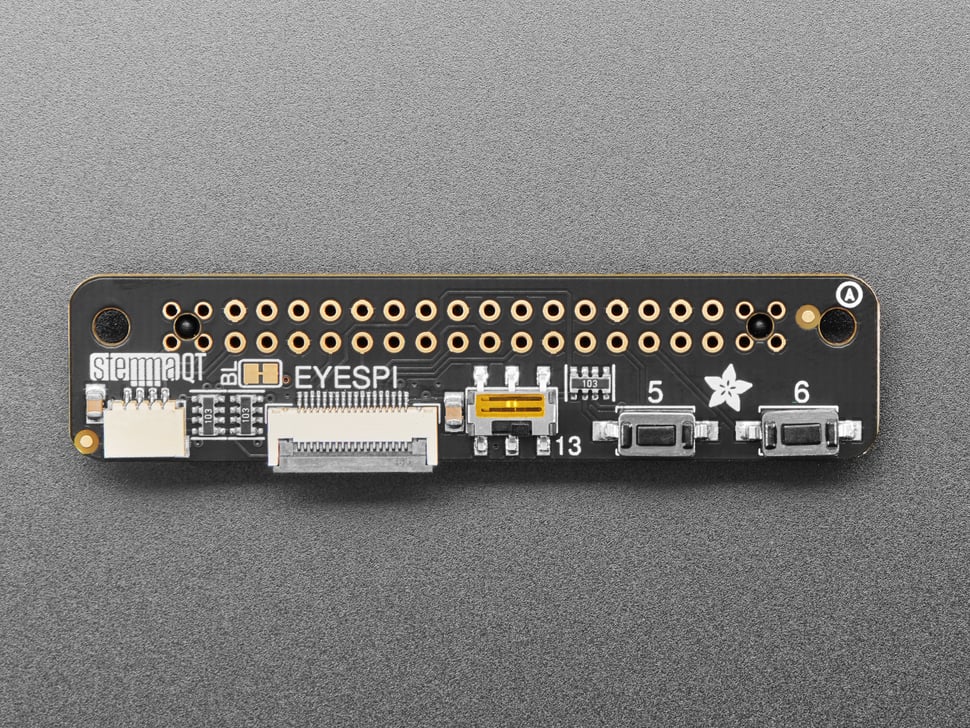

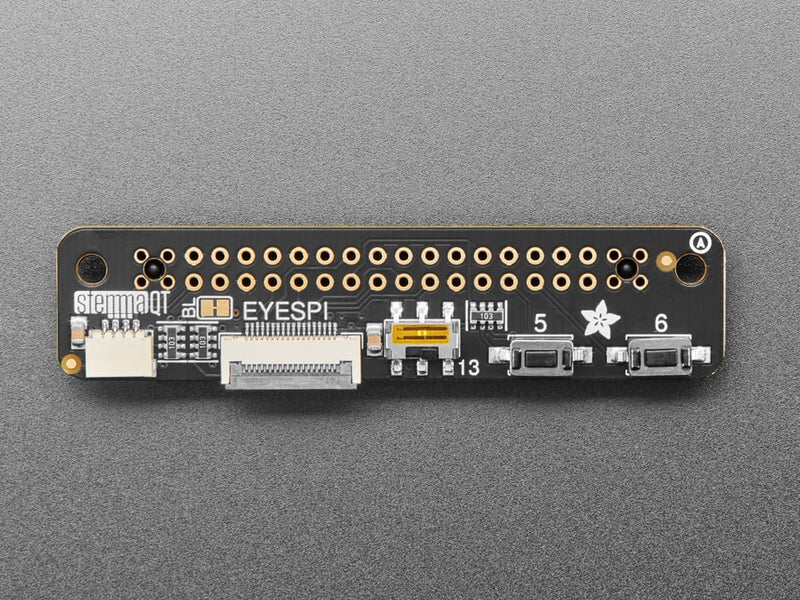

We also have a Stemma QT connector for the I2C port, to make connecting all sorts of Qwiic/Stemma QT devices super easy, two tactile switches on GPIO #5 and #6 and a slide switch on GPIO #13 which you can use for any sort of interface project or configuration.
Display and EYESPI cable are not included.
Technical Details

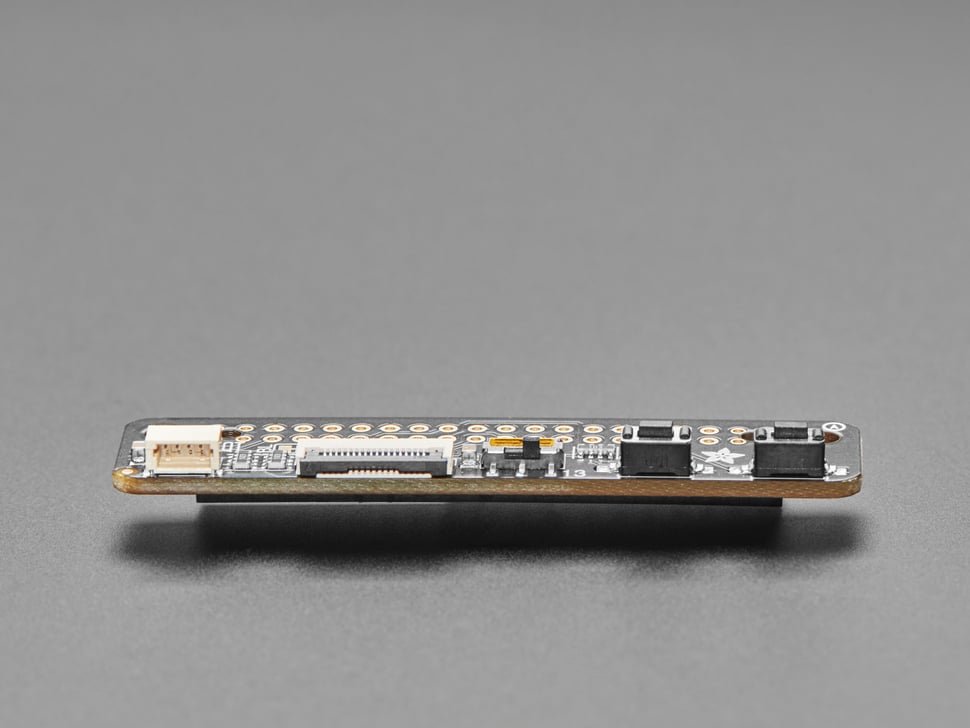

Product Dimensions: 64.8mm x 15.0mm x 9.7mm / 2.6" x 0.6" x 0.4"
Product Weight: 5.4g / 0.2oz
